CCV System Engineering: How Venturi Effect and Baffle Design Impact Oil Separation

The crankcase ventilation (CCV) system, also known as the positive crankcase ventilation (PCV) system, plays a vital role in maintaining engine health by managing blow-by gases. However, poor design can result in excessive oil consumption, turbo contamination and reduced engine efficiency. This article explores how Venturi effect dynamics and baffle engineering affect oil separation, and how CCV redirection or PCV redirection can optimize performance in modern diesel engines.

The Role of the CCV/PCV System

The CCV system prevents pressure build-up in the crankcase by rerouting blow-by gases back into the intake for combustion. However, if these gases are not properly controlled they can lead to oil mist, which:

·         Coat turbocharger wheels, reducing efficiency

·         Clog intercoolers, increasing intake air temperatures

·         Contaminate sensors, causing drivability issues

Venturi Effect: How It Enhances Oil Separation

Many high-performance CCV systems take advantage of the Venturi effect – a fluid dynamics principle in which the velocity of a gas increases as it passes through a constricted section, causing a reduction in pressure.

Key Benefits of Venturi-Based CCV Systems

Improved Oil Mist Capture – The low-pressure zone helps separate oil droplets from blow-by gases.
Reduced Turbo Contamination – Less oil ingestion means cleaner compressor wheels and intercoolers
Lower Crankcase Pressure – Efficient evacuation minimizes oil leaks and seal failures.

Baffle Design: The Unsung Hero of Oil Separation

An effective baffle system inside the valve cover or CCV housing ensures that oil droplets are trapped before entering the intake.

Critical Baffle Design Features

·         Multi-Stage Filtration – Mesh screens, centrifugal separators, and impact surfaces maximize oil capture.

·         Drainback Channels – Collected oil must return efficiently to the crankcase to prevent pooling.

·         Heat Resistance – High-quality materials prevent warping under extreme temperatures.

Why a CCV Reroute or PCV Reroute is Often Necessary

Factory CCV systems are often undersized or poorly routed, leading to:

·         Excessive oil consumption

·         Turbo oil coking

·         EGR and intake clogging

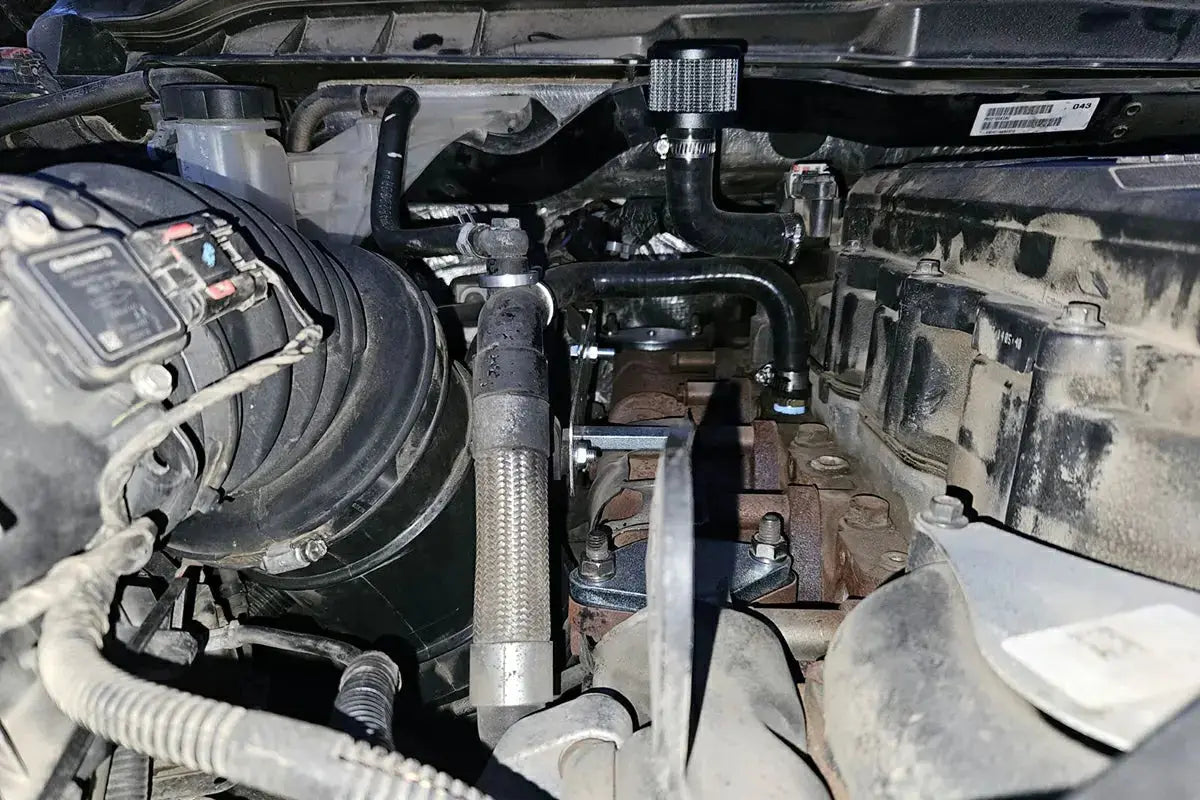

A high-quality CCV reroute kit solves these issues by:
Relocating the vent path (e.g., to atmosphere or a catch can)
Incorporating advanced baffling for superior oil separation
Reducing intake tract contamination

Performance & Longevity Benefits of an Optimized CCV System

·         Cleaner Turbo & Intercooler – Prevents oil buildup that restricts airflow.

·         Stable Crankcase Pressure – Reduces risk of leaks and seal failures.

·         Improved Engine Efficiency – Less oil burn means better combustion consistency.

Upgrade Your CCV System Today

If your engine suffers from excessive oil consumption or turbo contamination, a PCV/CCV reroute could be the solution. Check out our selection of high-performance CCV/PCV Reroute Kits to optimize your engine’s breathing.
